SmartKool EPS Panels
Building in 3D
Three-dimensional (3D) EPS panels are prefabricated building components constructed with a core of EPS insulation sandwiched between facings like steel, concrete, or oriented strand board (OSB). These innovative panels are transforming construction with their unique combination of benefits:
- 3D EPS panels come pre-cut and pre-assembled, significantly reducing on-site construction time compared to traditional construction methods.
- While lightweight, it provides impressive structural strength when encased within the facings. This translates to buildings that are not only quick to construct but also offer good durability and resistance to wind and earthquakes.
- Its exceptional thermal insulation properties significantly reduce heat transfer through walls.
- 3D EPS panels aren't limited to just walls. They can be used for floors, roofs, and even interior partitions.
- Similar to ICF blocks, the EPS core within 3D panels acts as a sound barrier. This reduces noise transmission, creating a quieter and more peaceful interior environment.
- 3D EPS panels offer a compelling solution for builders seeking a balance between speed, energy efficiency, and structural integrity.
3D EPS Panels
Smartkool Panels

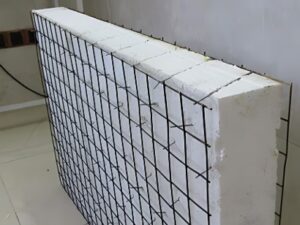

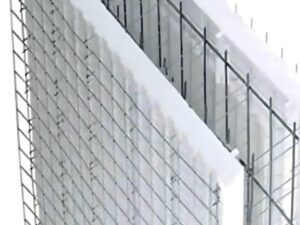

Structural insulated panels with EPS core for use in walls, roofs, and floors, providing enhanced insulation and structural integrity. EPS (Expanded Polystyrene) sandwich panels are composite building materials consisting of a core layer of expanded polystyrene sandwiched between two outer layers of rigid materials.
Purpose: Designed for use in construction, these panels offer a lightweight, insulated, and structurally sound solution for walls, roofs, and floors.
Why EPS Panels?
- Sustainable & Cost Effective
- Lighter is better
- Building Smart
- Building Strong
- Keeping the Cool In (or Out)
- Design Flexibility
| Product Name | Items | Specifications | |
|---|---|---|---|
| Welded Mesh | Wire diameter | 2 mm, 2.5 mm & 3 mm | |
| Max opening | 50 mm/50 mm standard | ||
| Max width | 1200 mm | ||
| Max length | 3000 mm (3mtr) | ||
| EPS panel | Density | 16-18kg/m | |
| Max Thickness | 50 mm - 140 mm | ||
| Max width | 1200 mm | ||
| Max length | 3000 mm (3 mtr) | ||
| Gap | Distance b/w EPS & welded mesh | 10 mm on each side | |
Build with 3D
Construction Works with EPS Panels
